Operating_region.h File Reference

Workflow 3 — certified (P,Q) region / post-OPF screening. More...

#include "Certificate_spec.h"
#include "Stability_certificate.h"
#include <string>
#include <utility>
#include <vector>

Include dependency graph for Operating_region.h:

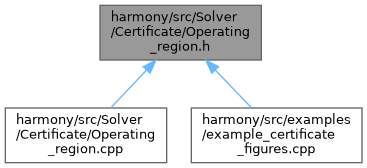

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	OperatingRegionResult
	Result of an operating-region certificate sweep. More...

Functions
OperatingRegionResult	certifyOperatingRegion (MMC &mmc, const OperatingRegionGrid &grid, const CertificateSpec &spec, const std::pair< double, double > *opf_PQ=nullptr)
	Re-equilibrate MMC over a (P,Q) grid and certify each set-point.
OperatingRegionResult	certifyOperatingPoints (MMC &mmc, const std::vector< std::pair< double, double > > &points, double Vm, double Vdc, const CertificateSpec &spec)
	Certify an explicit list of (P,Q) set-points (e.g.
void	reportOperatingRegion (const OperatingRegionResult &result, bool plotting_enabled=true)

Detailed Description

Workflow 3 — certified (P,Q) region / post-OPF screening.

Function Documentation

certifyOperatingPoints()

OperatingRegionResult certifyOperatingPoints	(	MMC &	mmc,
		const std::vector< std::pair< double, double > > &	points,
		double	Vm,
		double	Vdc,
		const CertificateSpec &	spec
	)

Certify an explicit list of (P,Q) set-points (e.g.

OPF candidates).

References OperatingRegionResult::n_certified, s, and OperatingRegionResult::samples.

certifyOperatingRegion()

OperatingRegionResult certifyOperatingRegion	(	MMC &	mmc,
		const OperatingRegionGrid &	grid,
		const CertificateSpec &	spec,
		const std::pair< double, double > *	opf_PQ = nullptr
	)

Re-equilibrate MMC over a (P,Q) grid and certify each set-point.

Post-OPF usage: set opf_PQ to the solved converter injection, optionally center the grid around it, then check whether the OPF point is certified.

References j, OperatingRegionResult::n_certified, OperatingRegionGrid::n_P, OperatingRegionGrid::n_Q, OperatingRegionResult::opf_point_certified, OperatingRegionGrid::P_max, OperatingRegionGrid::P_min, OperatingRegionResult::P_opf, OperatingRegionGrid::Q_max, OperatingRegionGrid::Q_min, OperatingRegionResult::Q_opf, s, OperatingRegionResult::samples, OperatingRegionGrid::Vdc, and OperatingRegionGrid::Vm.

Referenced by example_certificate_figures().

reportOperatingRegion()

void reportOperatingRegion	(	const OperatingRegionResult &	result,
		bool	plotting_enabled = true
	)

References OperatingRegionResult::n_certified, OperatingRegionResult::opf_point_certified, OperatingRegionResult::P_opf, plot_certificate_operating_region(), OperatingRegionResult::Q_opf, and OperatingRegionResult::samples.

Referenced by example_certificate_figures().
