SubNetwork Class Reference

Named sub-network that inherits Network topology APIs but acts as a non-owning view. More...

#include <SubNetwork.h>

Inheritance diagram for SubNetwork:

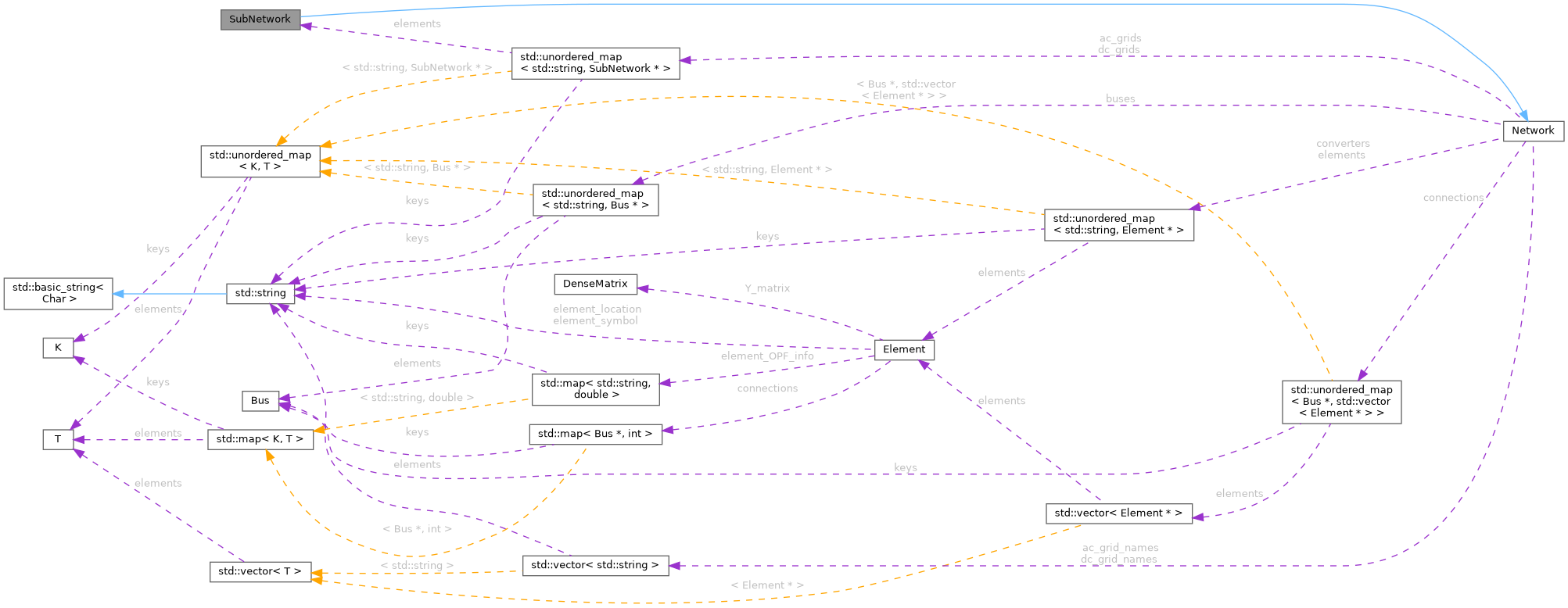

Collaboration diagram for SubNetwork:

Public Member Functions
	SubNetwork ()
	Construct an unnamed sub-network with default name "Unnamed_SubNetwork".
	SubNetwork (const std::string &name)
	Construct a named sub-network.
	~SubNetwork ()
	Release sub-network maps without deleting buses or elements.
std::string	getSubNetworkName () const
	Get the sub-network name.
void	setSubNetworkName (const std::string &name)
	Set the sub-network name.
void	addOutput (const std::string &busName, Bus *bus)
	Register an output (interface) bus for this sub-network.
void	setTransformation (bool flag)
	Enable or disable coordinate transformation (e.g.
bool	getTransformation () const
	Query whether coordinate transformation is enabled.
const std::unordered_map< std::string, Bus * > &	getOutputs () const
	Const access to the output-bus map.
const int	getNumberOfOutputs () const
	Get the number of registered output buses.
const string	getName () const
	Get the sub-network name (alias for getSubNetworkName).
void	printInfo () const
	Print sub-network summary (name, bus/element counts, output bus count).
Public Member Functions inherited from Network
	Network ()
	Construct an empty network with zero pins.
virtual	~Network ()
	Destroy the network and all owned buses, elements, and grid sub-networks.
void	addBus (const std::string &busName, std::unique_ptr< Bus > bus)
	Register an owned bus (transfers ownership on root networks).
void	addBus (Bus *bus)
	Register a bus using its own name as the map key.
void	addBus (const std::string &busName, Bus *bus)
	Register a bus under an explicit name (transfers ownership on root networks).
void	addBusView (const std::string &busName, Bus *bus)
	Register a non-owning bus pointer (used by SubNetwork views).
void	addElement (const std::string &designator, std::unique_ptr< Element > elem)
	Register an owned element.
void	addElement (Element *elem)
	Register an element using an auto-generated designator.
void	addElement (const std::string &designator, Element *elem)
	Register an element under a specific designator string.
void	addElementView (const std::string &designator, Element *elem)
	Register a non-owning element pointer (used by SubNetwork views).
void	connectElementToBus (Element *elem, int terminal, Bus *bus)
	Connect an element terminal to a bus and record the association in both directions.
void	deleteElement (const std::string &designator)
	Remove and destroy an element by designator.
void	deleteBus (const std::string &busName)
	Remove and destroy a bus by name.
void	printConnections ()
	Print bus-to-element connection listing to standard output.
void	printBuses ()
	Print all registered buses to standard output.
void	printElements ()
	Print all registered elements to standard output.
void	print_summary () const
	Print a concise summary of network contents (counts and names).
const std::unordered_map< std::string, Bus * > &	getBuses () const
	Const access to the bus name-to-pointer map.
const std::unordered_map< std::string, Element * > &	getElements () const
	Const access to the element designator-to-pointer map.
std::unordered_map< std::string, Element * > &	getElements ()
	Mutable access to the element designator-to-pointer map.
const std::unordered_map< Bus *, std::vector< Element * > > &	getConnections () const
	Const access to the bus-to-connected-elements map.
std::unordered_map< Bus *, std::vector< Element * > > &	getConnections ()
	Mutable access to the bus-to-connected-elements map.
void	add_areas ()
	Populate AC and DC grid sub-networks from the current flat network topology.
void	empty_areas ()
	Destroy all grid sub-networks and clear grid/converter registries.
bool	is_area_empty ()
	Check whether both AC and DC grid maps are empty.
vector< string >	get_ac_grid_names ()
	Return ordered names of registered AC grids.
vector< string >	get_dc_grid_names ()
	Return ordered names of registered DC grids.
std::unordered_map< std::string, SubNetwork * > &	get_ac_grids ()
	Mutable access to the AC grid sub-network map.
std::unordered_map< std::string, SubNetwork * > &	get_dc_grids ()
	Mutable access to the DC grid sub-network map.
std::unordered_map< std::string, Element * > &	get_converters ()
	Mutable access to the converter element map.

Additional Inherited Members
Protected Attributes inherited from Network
std::unordered_map< std::string, Bus * >	buses
std::unordered_map< std::string, Element * >	elements
std::unordered_map< Bus *, std::vector< Element * > >	connections
int	pins = 0
std::vector< std::string >	ac_grid_names
std::vector< std::string >	dc_grid_names
std::unordered_map< std::string, SubNetwork * >	ac_grids
std::unordered_map< std::string, SubNetwork * >	dc_grids
std::unordered_map< std::string, Element * >	converters
bool	ownsResources_ = true
	When true, buses/elements registered via addBus/addElement are owned.

Detailed Description

Named sub-network that inherits Network topology APIs but acts as a non-owning view.

Used to represent AC grids, DC grids, and modular partitions. Buses and elements registered here typically live in a parent Network; SubNetwork maps hold pointers without ownership. Output buses mark interface nodes at sub-network boundaries.

Constructor & Destructor Documentation

SubNetwork() [1/2]

SubNetwork::SubNetwork

(

)

Construct an unnamed sub-network with default name "Unnamed_SubNetwork".

References Network::ownsResources_.

SubNetwork() [2/2]

SubNetwork::SubNetwork ( const std::string &  name )

explicit

Construct a named sub-network.

Parameters

name	Human-readable sub-network identifier.

References Network::ownsResources_.

~SubNetwork()

SubNetwork::~SubNetwork

(

)

Release sub-network maps without deleting buses or elements.

Clears internal maps (buses, elements, connections, output buses, grids, converters) only. Pointers refer to objects owned by the parent Network; they are not deleted here.

References Network::ac_grid_names, Network::ac_grids, Network::buses, Network::connections, Network::converters, Network::dc_grid_names, Network::dc_grids, and Network::elements.

Member Function Documentation

addOutput()

void SubNetwork::addOutput ( const std::string &  busName, Bus *  bus  )

inline

Register an output (interface) bus for this sub-network.

Parameters

busName	Key for the output bus in the local map.
bus	Non-owning pointer to the interface bus; ignored if null.

getName()

const string SubNetwork::getName ( ) const

inline

Get the sub-network name (alias for getSubNetworkName).

Returns

Sub-network identifier string.

Referenced by StabilityEstimate::compute_equivalent_admittance_parameters_num().

getNumberOfOutputs()

const int SubNetwork::getNumberOfOutputs ( ) const

inline

Get the number of registered output buses.

Returns

Count of entries in the output-bus map.

getOutputs()

const std::unordered_map< std::string, Bus * > & SubNetwork::getOutputs ( ) const

inline

Const access to the output-bus map.

Returns

Map of output bus names to non-owning bus pointers.

Referenced by StabilityEstimate::compute_closing_impedance(), and StabilityEstimate::compute_equivalent_admittance_parameters_num().

getSubNetworkName()

std::string SubNetwork::getSubNetworkName ( ) const

inline

Get the sub-network name.

Returns

Current sub-network identifier string.

getTransformation()

bool SubNetwork::getTransformation ( ) const

inline

Query whether coordinate transformation is enabled.

Returns

Current transformation flag.

Referenced by Network::add_areas(), and StabilityEstimate::compute_equivalent_admittance_parameters_num().

printInfo()

void SubNetwork::printInfo

(

)

const

Print sub-network summary (name, bus/element counts, output bus count).

References Network::getBuses(), and Network::getElements().

setSubNetworkName()

void SubNetwork::setSubNetworkName ( const std::string &  name )

inline

Set the sub-network name.

Parameters

name	New identifier string.

setTransformation()

void SubNetwork::setTransformation ( bool  flag )

inline

Enable or disable coordinate transformation (e.g.

abc to dq) for this sub-network.

Parameters

flag	True to apply transformation; false otherwise.

---

The documentation for this class was generated from the following files:

• harmony/src/SubNetwork.h
• harmony/src/SubNetwork.cpp
