InputGroup Struct Reference

Per-source metadata for raw and DQsym B-column layout. More...

#include <State_Space_Model.h>

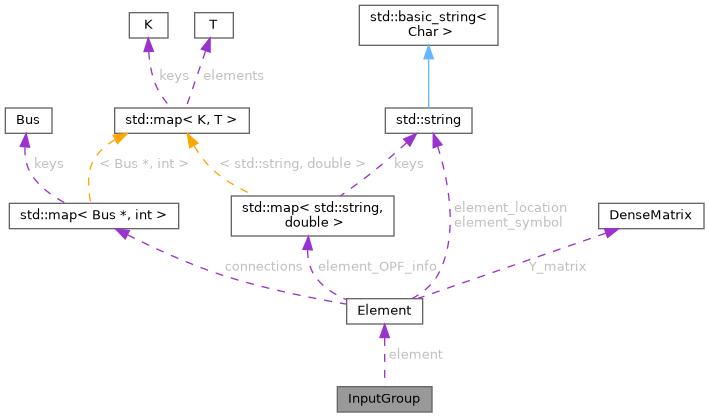

Collaboration diagram for InputGroup:

Public Attributes
Element *	element
int	rawCols
	Actual pin count (2 for DC, 3 for AC, 12 for MMC virtual)
int	dqsymCols
	After expansion: ceil to next multiple of 3.
int	rawStartCol
	Start column in raw B.
int	dqsymStartCol
	Start column in B_dqsym.
bool	isVirtual

Detailed Description

Per-source metadata for raw and DQsym B-column layout.

Tracks how many raw and expanded columns each independent source or virtual-input provider contributes to the input matrix.

Member Data Documentation

dqsymCols

int InputGroup::dqsymCols

After expansion: ceil to next multiple of 3.

dqsymStartCol

int InputGroup::dqsymStartCol

Start column in B_dqsym.

element

Element* InputGroup::element

isVirtual

bool InputGroup::isVirtual

rawCols

int InputGroup::rawCols

Actual pin count (2 for DC, 3 for AC, 12 for MMC virtual)

rawStartCol

int InputGroup::rawStartCol

Start column in raw B.

---

The documentation for this struct was generated from the following file:

• harmony/src/Solver/State_Space_Model/State_Space_Model.h
