Dynamic-phasor arithmetic and abc ↔ dqn domain conversions. More...

#include "../../Constants.h"

Include dependency graph for DQsym_Conversion_Functions.h:

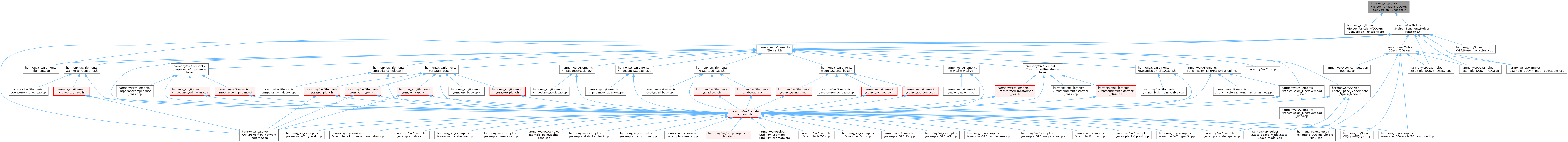

This graph shows which files directly or indirectly include this file:

Classes
struct	ABCResult
	Time-domain abc waveform reconstructed from dqn coefficients. More...

Functions
MatrixXcd	dq_add (const MatrixXcd &a, const MatrixXcd &b)
	Element-wise addition of two dynamic-phasor coefficient matrices.

MatrixXcd	dq_subtract (const MatrixXcd &a, const MatrixXcd &b)
	Element-wise subtraction of two dynamic-phasor coefficient matrices.

MatrixXcd	dq_integrate (MatrixXcd &Zpnz_old, MatrixXcd &Xpnz_old, const MatrixXcd &Xpnz, double dt, double w)
	Integrates a dynamic-phasor signal over one time step.

MatrixXcd	dq_multiply (const MatrixXcd &x_coef1_in, const MatrixXcd &y_coef1_in)
	Multiplies two dynamic-phasor coefficient matrices (convolution in harmonic domain).

void	convertToPhasor (const MatrixXcd &A, const MatrixXcd &B, const MatrixXcd &C, const MatrixXcd &D, MatrixXcd &Adc, MatrixXcd &Bdc, MatrixXcd &Cdc, MatrixXcd &Ddc)
	Converts abc-stacked state-space matrices to phasor/sequence domain.

MatrixXcd	truncateHarmonics (const MatrixXcd &X, int nColsToKeep)
	Truncates harmonic columns beyond nKeep in a coefficient matrix.

Vector3d	dqn2abc_at_time (const MatrixXcd &Xdcpnz_c, double theta)
	Reconstructs abc phase values from a 3×H dqn block at one angle.

std::vector< Vector3d >	dqn2abc_groups_at_time (const MatrixXcd &Y, double theta)
	Reconstructs abc values for all 3-row output groups at one angle.

ABCResult	simulate_dqn2abc (const MatrixXcd &Xdcpnz_c, double freq_hz, double t0, double t1, double Ts)
	Simulates abc waveform reconstruction over a time interval.

Detailed Description

Dynamic-phasor arithmetic and abc ↔ dqn domain conversions.

Provides element-wise phasor operations, harmonic truncation, and reconstruction of three-phase abc waveforms from dqn coefficient blocks used by the DQsym solver.

Function Documentation

◆ convertToPhasor()

void convertToPhasor	(	const MatrixXcd &	A,
		const MatrixXcd &	B,
		const MatrixXcd &	C,
		const MatrixXcd &	D,
		MatrixXcd &	Adc,
		MatrixXcd &	Bdc,
		MatrixXcd &	Cdc,
		MatrixXcd &	Ddc
	)

extern

Converts abc-stacked state-space matrices to phasor/sequence domain.

Parameters

A	Continuous-time state matrix (abc layout).
B	Continuous-time input matrix (abc layout).
C	Continuous-time output matrix (abc layout).
D	Continuous-time feed-through matrix (abc layout).
Adc	Output: phasor-domain state matrix.
Bdc	Output: phasor-domain input matrix.
Cdc	Output: phasor-domain output matrix.
Ddc	Output: phasor-domain feed-through matrix.

Converts abc-stacked state-space matrices to phasor/sequence domain.

References j.

Referenced by DQsym::DSSS().

◆ dq_add()

MatrixXcd dq_add	(	const MatrixXcd &	a,
		const MatrixXcd &	b
	)

extern

Element-wise addition of two dynamic-phasor coefficient matrices.

Parameters

a	First operand.
b	Second operand.

Returns: a + b in the phasor domain.

Element-wise addition of two dynamic-phasor coefficient matrices.

This function computes the sum of two matrices, a and b. If the matrices have different dimensions, the result matrix is sized to encompass both, effectively zero-padding the smaller matrix before addition.

Parameters

a	The first matrix operand.
b	The second matrix operand.

Returns: A new matrix representing the sum of a and b.

Referenced by example_DQsym_math_operations().

◆ dq_integrate()

MatrixXcd dq_integrate	(	MatrixXcd &	Zpnz_old,
		MatrixXcd &	Xpnz_old,
		const MatrixXcd &	Xpnz,
		double	dt,
		double	w
	)

extern

Integrates a dynamic-phasor signal over one time step.

Parameters

Zpnz_old	Previous integrated state (updated in place).
Xpnz_old	Previous input sample (updated in place).
Xpnz	Current input sample.
dt	Time step (s).
w	Angular frequency (rad/s).

Returns: Integrated phasor coefficients.

Integrates a dynamic-phasor signal over one time step.

Referenced by example_DQsym_math_operations().

◆ dq_multiply()

MatrixXcd dq_multiply	(	const MatrixXcd &	x_coef1_in,
		const MatrixXcd &	y_coef1_in
	)

extern

Multiplies two dynamic-phasor coefficient matrices (convolution in harmonic domain).

Parameters

x_coef1_in	First operand coefficients.
y_coef1_in	Second operand coefficients.

Returns: Product coefficients.

Multiplies two dynamic-phasor coefficient matrices (convolution in harmonic domain).

C++ translation aligned with MATLAB: Zdcpnz_c = SICO_DPs_3ph(x_coef1, y_coef1, N)

Input convention:

3 rows = abc phases
column 0 = DC term
column k = harmonic k

Output:

3 x (2N+1) matrix in abc basis, where N = max(input harmonic order)

References s, and sgn().

Referenced by example_DQsym_math_operations(), and MMC::simulateInputStep().

◆ dq_subtract()

MatrixXcd dq_subtract	(	const MatrixXcd &	a,
		const MatrixXcd &	b
	)

extern

Element-wise subtraction of two dynamic-phasor coefficient matrices.

Parameters

a	Minuend.
b	Subtrahend.

Returns: a - b in the phasor domain.

Element-wise subtraction of two dynamic-phasor coefficient matrices.

This function computes the difference of two matrices, a - b. If the matrices have different dimensions, the result matrix is sized to encompass both, effectively zero-padding the smaller matrix before subtraction.

Parameters

a	The matrix to subtract from (minuend).
b	The matrix to subtract (subtrahend).

Returns: A new matrix representing the difference a - b.

Referenced by example_DQsym_math_operations().

◆ dqn2abc_at_time()

Vector3d dqn2abc_at_time	(	const MatrixXcd &	Xdcpnz_c,
		double	theta
	)

extern

Reconstructs abc phase values from a 3×H dqn block at one angle.

Parameters

Xdcpnz_c	dqn coefficient block (3 rows).
theta	Electrical angle (rad) at which to evaluate.

Returns: Three-phase abc vector [a, b, c].

Reconstructs abc phase values from a 3×H dqn block at one angle.

Input format:

rows = 3 : positive, negative, zero sequence
cols = harmonic orders, where col(0) is DC and col(h) is harmonic h

Parameters

Xdcpnz_c	3 x Nh complex coefficient matrix
theta	electrical angle [rad]

Returns: Vector3d instantaneous abc values at theta

Referenced by dqn2abc_groups_at_time(), and simulate_dqn2abc().

◆ dqn2abc_groups_at_time()

std::vector< Vector3d > dqn2abc_groups_at_time	(	const MatrixXcd &	Y,
		double	theta
	)

extern

Reconstructs abc values for all 3-row output groups at one angle.

Parameters

Y	Output coefficient matrix with rows grouped in triplets.
theta	Electrical angle (rad) at which to evaluate.

Returns: One abc vector per output group.

Reconstructs abc values for all 3-row output groups at one angle.

Y is expected to have rows grouped as:

rows 0..2 : group 1
rows 3..5 : group 2
rows 6..8 : group 3
...

Each 3-row group is interpreted as a 3xH dynamic-phasor sequence matrix and converted to one instantaneous abc vector at the supplied angle theta.

Parameters

Y	A matrix with row count equal to 3 * number_of_groups.
theta	Electrical angle [rad] at this one instant in time.

Returns: A vector of abc instantaneous vectors, one per 3-row group.

References dqn2abc_at_time().

Referenced by example_DQsym_DSSS2(), example_DQsym_RLC(), and DQsym::run().

◆ simulate_dqn2abc()

ABCResult simulate_dqn2abc	(	const MatrixXcd &	Xdcpnz_c,
		double	freq_hz,
		double	t0,
		double	t1,
		double	Ts
	)

extern

Simulates abc waveform reconstruction over a time interval.

Parameters

Xdcpnz_c	dqn coefficient block (3 rows × H columns).
freq_hz	Fundamental frequency in Hz.
t0	Start time (s).
t1	End time (s).
Ts	Sample period (s).

Returns: Time vector and abc waveform matrix.

Simulates abc waveform reconstruction over a time interval.

Parameters

Xdcpnz_c	3 x Nh complex coefficient matrix
freq_hz	base electrical frequency [Hz]
t0	start time [s]
t1	end time [s]
Ts	sample time [s]

Returns: ABCResult containing time vector and Nx3 abc waveform matrix

References dqn2abc_at_time(), ABCResult::t, and ABCResult::Xabc.

Referenced by example_DQsym_math_operations().

◆ truncateHarmonics()

MatrixXcd truncateHarmonics	(	const MatrixXcd &	X,
		int	nColsToKeep
	)

extern

Truncates harmonic columns beyond nKeep in a coefficient matrix.

Parameters

X	Input coefficient matrix (3 rows × H columns).
nColsToKeep	Number of harmonic columns to retain.

Returns: Truncated matrix.

Referenced by MMC::simulateInputStep().
