OPFVisualData Struct Reference

Container for all OPF topology and solution data needed by viz_opf(). More...

#include <Visualization.h>

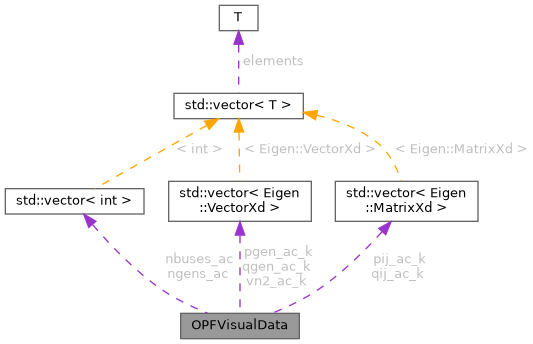

Collaboration diagram for OPFVisualData:
Collaboration graph
[legend]

Public Attributes

Eigen::MatrixXd bus_entire_ac

Eigen::MatrixXd branch_entire_ac

Eigen::MatrixXd gen_entire_ac

Eigen::MatrixXd bus_dc

Eigen::MatrixXd branch_dc

Eigen::MatrixXd conv_dc

Eigen::VectorXd vn2_dc_k

Eigen::VectorXd ps_dc_k

Eigen::VectorXd qs_dc_k

Eigen::MatrixXd pij_dc_k

std::vector< int > nbuses_ac

std::vector< int > ngens_ac

std::vector< Eigen::VectorXd > vn2_ac_k

std::vector< Eigen::VectorXd > pgen_ac_k

std::vector< Eigen::VectorXd > qgen_ac_k

std::vector< Eigen::MatrixXd > pij_ac_k

std::vector< Eigen::MatrixXd > qij_ac_k

int nconvs_dc

int nbuses_dc

int ngrids

double baseMVA_ac

double baseMW_dc

double pol_dc


Detailed Description

Container for all OPF topology and solution data needed by viz_opf().

Container for OPF topology and solution data passed to viz_opf().

Member Data Documentation

◆ baseMVA_ac

double OPFVisualData::baseMVA_ac

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ baseMW_dc

double OPFVisualData::baseMW_dc

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ branch_dc

Eigen::MatrixXd OPFVisualData::branch_dc

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ branch_entire_ac

Eigen::MatrixXd OPFVisualData::branch_entire_ac

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ bus_dc

Eigen::MatrixXd OPFVisualData::bus_dc

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ bus_entire_ac

Eigen::MatrixXd OPFVisualData::bus_entire_ac

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ conv_dc

Eigen::MatrixXd OPFVisualData::conv_dc

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ gen_entire_ac

Eigen::MatrixXd OPFVisualData::gen_entire_ac

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ nbuses_ac

std::vector< int > OPFVisualData::nbuses_ac

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ nbuses_dc

int OPFVisualData::nbuses_dc

Referenced by PowerFlow::solve_opf().

◆ nconvs_dc

int OPFVisualData::nconvs_dc

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ ngens_ac

std::vector< int > OPFVisualData::ngens_ac

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ ngrids

int OPFVisualData::ngrids

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ pgen_ac_k

std::vector< Eigen::VectorXd > OPFVisualData::pgen_ac_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ pij_ac_k

std::vector< Eigen::MatrixXd > OPFVisualData::pij_ac_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ pij_dc_k

Eigen::MatrixXd OPFVisualData::pij_dc_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ pol_dc

double OPFVisualData::pol_dc

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ ps_dc_k

Eigen::VectorXd OPFVisualData::ps_dc_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ qgen_ac_k

std::vector< Eigen::VectorXd > OPFVisualData::qgen_ac_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ qij_ac_k

std::vector< Eigen::MatrixXd > OPFVisualData::qij_ac_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ qs_dc_k

Eigen::VectorXd OPFVisualData::qs_dc_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ vn2_ac_k

std::vector< Eigen::VectorXd > OPFVisualData::vn2_ac_k

Referenced by PowerFlow::solve_opf(), and viz_opf().

◆ vn2_dc_k

Eigen::VectorXd OPFVisualData::vn2_dc_k

Referenced by PowerFlow::solve_opf(), and viz_opf().
