Multi-layer cable model with conductor and insulator sections. More...

#include <Cable.h>

Inheritance diagram for Cable:

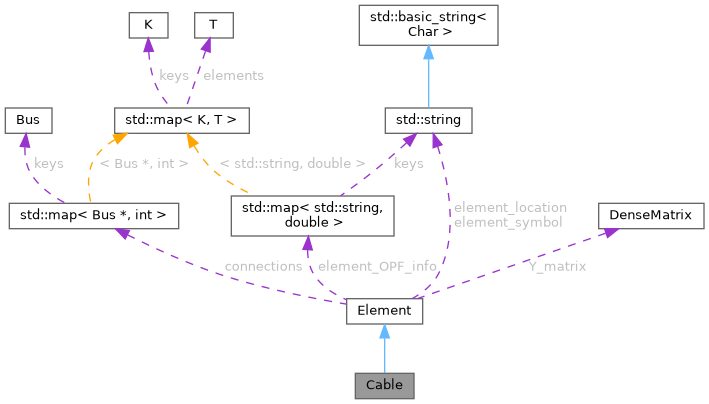

Collaboration diagram for Cable:

[legend]

Classes
class	Conductor
	Conducting layer with inner/outer radius and material properties. More...

class	Insulator
	Insulating layer with optional inner/outer semiconductor radii. More...

Public Member Functions
	Cable ()
	Default cable with placeholder symbol, location, and pin counts.

	Cable (const string &symbol, const std::string &location, int pins, const string &type_constructor, double length_constructor, std::tuple< double, double, double > earth, std::map< string, Conductor * > conductors_constructor, std::map< string, Insulator * > insulators_constructor, std::vector< std::pair< double, double > > positions_constructor)
	Construct a cable from geometry, earth, conductor, and insulator maps.

void	setLength (double newLength)

void	addConductor (const std::string &key, Conductor *conductor)

void	addInsulator (const std::string &key, Insulator *insulator)

void	addPosition (double x, double y)

void	setEarthParameters (double mu, double epsilon, double rho)

void	setConfiguration (const std::string &newConfig)

void	setEliminate (bool value)

double	getLength () const

const std::tuple< double, double, double > &	getEarthParameters () const

const std::vector< std::pair< double, double > > &	getPositions () const

const std::string &	getConfiguration () const

const std::string &	getType () const

bool	getEliminate () const

Conductor *	getConductor (const std::string &key)

Insulator *	getInsulator (const std::string &key)

void	updateInsulator (const std::string &key, Insulator *insulator)

void	updateLayers ()

void	updateConductor (const std::string &key, Conductor *conductor)

void	removeConductor (const std::string &key)

const std::map< std::string, Conductor * > &	getCableConductors () const

const std::map< std::string, Insulator * > &	getCableInsulators () const

bool	hasProperty (const std::string &key)

bool	isConductor (const std::string &key)

bool	isInsulator (const std::string &key)

virtual std::vector< std::vector< complex< double > > >	compute_y_parameters (double frequency) override
	Compute complex Y-parameters at a single frequency.

virtual void	printElementValues () override
	Print extended element-specific values (override in derived classes).

	~Cable ()

Public Member Functions inherited from Element
	Element (const std::string &symbol, const std::string &location, int inputPins, int outputPins)
	Construct an element with symbol, location, and pin counts.

virtual	~Element ()
	Virtual destructor for derived-class cleanup.

int	getInputPins () const
	Get the number of input pins/phases.

int	getOutputPins () const
	Get the number of output pins/phases.

void	setInputPins (int pins)
	Set the number of input pins/phases.

void	setOutputPins (int pins)
	Set the number of output pins/phases.

void	setTransformation (bool flag)
	Enable or disable coordinate transformation for this element.

std::string	getElementSymbol () const
	Get the element type symbol.

std::vector< Bus * >	getBuses ()
	Collect all buses connected to this element.

int	getBusIndex (Bus *bus)
	Find the terminal index associated with a given bus.

Bus *	getOtherBus (Bus *)
	Get the bus connected at the opposite terminal from a given bus.

const std::map< Bus *, int > &	getConnections () const
	Const access to the bus-to-terminal connection map.

std::map< Bus *, int >	getConnections ()
	Copy of the bus-to-terminal connection map.

string	getElementLocation () const
	Get the element's grid or partition location label.

void	attachBus (Bus *, int)
	Attach a bus to a specific element terminal.

void	printElementInfo () const
	Print basic element metadata (symbol, input/output pin counts).

void	writeFile (double start_frequency, double end_frequency, int number_of_points)
	Write Y-parameter matrix samples over a frequency sweep to a file.

void	plotYParameters (double start_frequency, double end_frequency, int number_of_points)
	Plot Y-parameter matrix entries versus frequency.

virtual void	plotEigenvalues ()
	Plot eigenvalues of the element model (override in state-space elements).

virtual void	plotParticipationFactors ()
	Plot participation factors (override in state-space elements).

virtual DenseMatrix	get_y_parameters ()
	Get the symbolic or stored Y-parameter matrix.

virtual std::vector< std::vector< complex< double > > >	apply_transformation (std::vector< std::vector< complex< double > > > &Y1, std::vector< std::vector< complex< double > > > &Y2)
	Apply a coordinate or coupling transformation to Y-parameter blocks.

virtual void	writeMNAmatrix (SymEngine::DenseMatrix &, std::unordered_map< Bus , int > &, int, std::map< Element , std::vector< RCP< const Basic > > > &)
	Stamp this element into the symbolic MNA matrix (override in derived classes).

virtual int	getNumberOfInternalStates () const
	Number of internal state variables for dynamic elements.

virtual int	getNumberOfPlantStates () const
	Number of plant states exposed for simulation (may differ from internal states).

virtual std::vector< MatrixXcd >	simulateInputStep (const std::vector< MatrixXcd > &states, int nKeep) const
	Simulate a step response given input states (override in dynamic elements).

virtual std::vector< RCP< const Basic > >	getVirtualInputSymbols () const
	Return symbolic names for virtual inputs used in stamping.

virtual map_basic_basic	getParameterSubstitutions () const
	Return parameter substitutions for symbolic evaluation.

virtual void	computePowerFlow (std::map< std::string, double > &branchData, std::map< std::string, double > &globalParams) const
	Compute branch power-flow quantities (override in derived classes).

std::map< std::string, double >	getOPFInfo () const
	Get stored OPF-related metadata for this element.

void	setOPFInfo (std::map< std::string, double > &info)
	Store OPF-related metadata for this element.

Additional Inherited Members
Protected Attributes inherited from Element
bool	transformation = false

std::string	element_symbol

std::string	element_location

int	input_pins

int	output_pins

std::map< Bus *, int >	connections

std::map< std::string, double >	element_OPF_info = {}

DenseMatrix	Y_matrix

Detailed Description

Multi-layer cable model with conductor and insulator sections.

Constructor & Destructor Documentation

◆ Cable() [1/2]

Cable::Cable ( )

inline

Default cable with placeholder symbol, location, and pin counts.

◆ Cable() [2/2]

Cable::Cable	(	const string &	symbol,
		const std::string &	location,
		int	pins,
		const string &	type_constructor,
		double	length_constructor,
		std::tuple< double, double, double >	earth,
		std::map< string, Conductor * >	conductors_constructor,
		std::map< string, Insulator * >	insulators_constructor,
		std::vector< std::pair< double, double > >	positions_constructor
	)

Construct a cable from geometry, earth, conductor, and insulator maps.

Constructs a new Cable object.

Parameters

symbol	Element identifier.
location	Network area or location string.
pins	Number of pins (phases).
type_constructor	Cable type ("underground" or "aerial").
length_constructor	Line length (m).
earth	Earth parameters tuple (mu_r, epsilon_r, resistivity).
conductors_constructor	Map of conductor symbols to Conductor layers.
insulators_constructor	Map of insulator symbols to Insulator layers.
positions_constructor	(x, y) positions of each cable in the layout.

This constructor initializes a cable element with its physical and electrical properties. It performs extensive calculations to model the cable's behavior, including impedance and admittance matrix computations using symbolic mathematics. The constructor handles various configurations, such as single-core, multi-layer cables, and multi-cable systems, and accounts for earth return path effects.

Parameters

symbol	The unique identifier for the cable element.
location	The location of the element within the circuit.
pins	The number of connection pins for the element.
type_constructor	The type of the cable (e.g., "underground").
configuration_constructor	A string describing the cable's physical configuration.
length_constructor	The length of the cable in meters.
earth	A tuple containing the ground properties: relative permeability (μᵣ), relative permittivity (εᵣ), and resistivity (ρ) in Ωm.
conductors_constructor	A map of conductor layers, where the key is a string identifier (e.g., "C1", "SC") and the value is a pointer to a Conductor object.
insulators_constructor	A map of insulator layers, where the key is a string identifier (e.g., "I1") and the value is a pointer to an Insulator object.
positions_constructor	A vector of (x, y) coordinate pairs specifying the position of each cable in a multi-cable system.

References createZeroMatrix(), epsilon_0, gamma_num, getType(), j, kron_reduction(), mu_0, Cable::Insulator::permeability, Cable::Insulator::permittivity, Cable::Insulator::ri, Cable::Insulator::ro, s, updateLayers(), and Element::Y_matrix.

◆ ~Cable()

Cable::~Cable ( )

Member Function Documentation

◆ addConductor()

void Cable::addConductor	(	const std::string &	key,
		Conductor *	conductor
	)

inline

◆ addInsulator()

void Cable::addInsulator	(	const std::string &	key,
		Insulator *	insulator
	)

inline

◆ addPosition()

void Cable::addPosition	(	double	x,
		double	y
	)

inline

◆ compute_y_parameters()

std::vector< std::vector< complex< double > > > Cable::compute_y_parameters ( double frequency )

overridevirtual

Compute complex Y-parameters at a single frequency.

Computes the numerical Y-parameter matrix at a given frequency.

Default implementation returns an empty matrix; derived classes provide the frequency-dependent admittance.

Parameters

frequency Evaluation frequency in Hz.

Returns: Complex Y-parameter matrix as nested vectors.

Parameters

frequency The frequency in Hz for which to compute the Y-parameters.

Returns: A 2D vector of complex numbers representing the Y-parameter matrix.

Reimplemented from Element.

References j, omega, and substitute_symbol().

◆ getCableConductors()

const std::map< std::string, Conductor * > & Cable::getCableConductors ( ) const

inline

◆ getCableInsulators()

const std::map< std::string, Insulator * > & Cable::getCableInsulators ( ) const

inline

◆ getConductor()

Conductor * Cable::getConductor ( const std::string & key )

inline

Referenced by updateLayers().

◆ getConfiguration()

const std::string & Cable::getConfiguration ( ) const

inline

◆ getEarthParameters()

const std::tuple< double, double, double > & Cable::getEarthParameters ( ) const

inline

◆ getEliminate()

bool Cable::getEliminate ( ) const

inline

◆ getInsulator()

Insulator * Cable::getInsulator ( const std::string & key )

inline

Referenced by updateLayers().

◆ getLength()

double Cable::getLength ( ) const

inline

◆ getPositions()

const std::vector< std::pair< double, double > > & Cable::getPositions ( ) const

inline

◆ getType()

const std::string & Cable::getType ( ) const

inline

Referenced by Cable().

◆ hasProperty()

bool Cable::hasProperty ( const std::string & key )

inline

◆ isConductor()

bool Cable::isConductor ( const std::string & key )

inline

◆ isInsulator()

bool Cable::isInsulator ( const std::string & key )

inline

◆ printElementValues()

void Cable::printElementValues ( )

overridevirtual

Print extended element-specific values (override in derived classes).

Prints the symbolic Y-parameter matrix of the element to the console.

Reimplemented from Element.

Referenced by example_cable().

◆ removeConductor()

void Cable::removeConductor ( const std::string & key )

inline

Referenced by updateLayers().

◆ setConfiguration()

void Cable::setConfiguration ( const std::string & newConfig )

inline

◆ setEarthParameters()

void Cable::setEarthParameters	(	double	mu,
		double	epsilon,
		double	rho
	)

inline

◆ setEliminate()

void Cable::setEliminate ( bool value )

inline

◆ setLength()

void Cable::setLength ( double newLength )

inline

◆ updateConductor()

void Cable::updateConductor	(	const std::string &	key,
		Conductor *	conductor
	)

inline

Referenced by updateLayers().

◆ updateInsulator()

void Cable::updateInsulator	(	const std::string &	key,
		Insulator *	insulator
	)

inline

◆ updateLayers()

void Cable::updateLayers ( )

References getConductor(), getInsulator(), Cable::Insulator::permeability, Cable::Insulator::permittivity, removeConductor(), Cable::Conductor::ri, Cable::Insulator::ri, Cable::Conductor::ro, Cable::Insulator::ro, and updateConductor().

Referenced by Cable().

The documentation for this class was generated from the following files:

harmony/src/Elements/Transmission_Line/Cable.h
harmony/src/Elements/Transmission_Line/Cable.cpp

Classes

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Cable() [1/2]

◆ Cable() [2/2]

◆ ~Cable()

Member Function Documentation

◆ addConductor()

◆ addInsulator()

◆ addPosition()

◆ compute_y_parameters()

◆ getCableConductors()

◆ getCableInsulators()

◆ getConductor()

◆ getConfiguration()

◆ getEarthParameters()

◆ getEliminate()

◆ getInsulator()

◆ getLength()

◆ getPositions()

◆ getType()

◆ hasProperty()

◆ isConductor()

◆ isInsulator()

◆ printElementValues()

◆ removeConductor()

◆ setConfiguration()

◆ setEarthParameters()

◆ setEliminate()

◆ setLength()

◆ updateConductor()

◆ updateInsulator()

◆ updateLayers()
