Abstract power converter with ABCD matrices, controllers, and filters. More...

#include <Converter.h>

Inheritance diagram for Converter:

[legend]

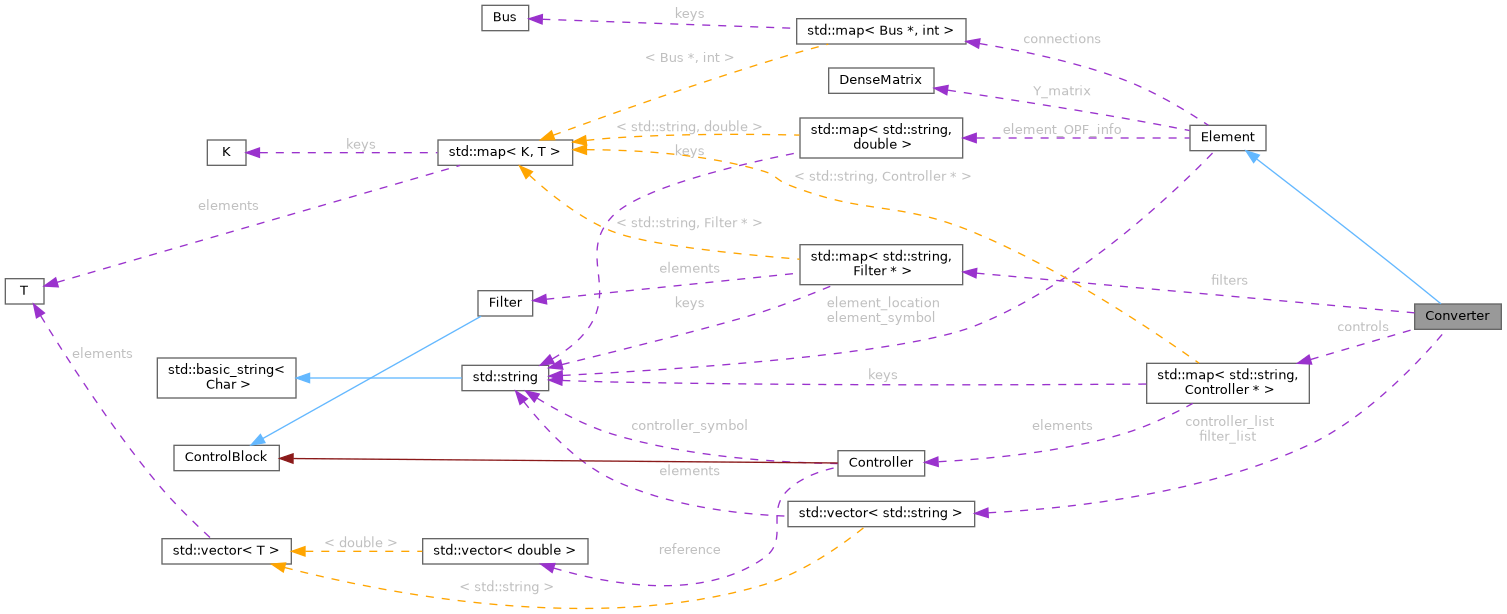

Collaboration diagram for Converter:

[legend]

Public Member Functions
	Converter (const std::string &symbol, const std::string &location)
	Construct a three-phase, two-terminal converter element.

virtual	~Converter ()

Eigen::MatrixXd	getA () const

Eigen::MatrixXd	getB () const

Eigen::MatrixXd	getC () const

Eigen::MatrixXd	getD () const

Eigen::MatrixXd	getAd () const

Eigen::MatrixXd	getBd () const

Eigen::MatrixXd	getCd () const

Eigen::MatrixXd	getDd () const

Eigen::VectorXd	getEquilibriumState () const

VectorXcd	getEigenvalues ()

VectorXcd	getEigenvectors ()

string	getACarea () const

string	getDCarea () const

virtual void	solveEquilibrium ()

virtual void	computeABCD ()

virtual void	discretize (double Ts)

virtual Eigen::MatrixXd	computeStateDerivatives (const Eigen::VectorXd &x, const Eigen::VectorXd &u)

void	computeEigenvalues ()

Eigen::MatrixXd	computeParticipationFactors (const Eigen::MatrixXd &A_matrix)

virtual vector< MatrixXcd >	simulateTimeStep (const vector< MatrixXcd > &input, double Ts, int nKeep1, int nKeep2)

void	checkStability () const
	Check system stability by evaluating eigenvalues of the A matrix.

void	printEigenvalues () const
	Print eigenvalues of the A matrix.

virtual void	plotEigenvalues () override
	Plot eigenvalues in the complex plane.

virtual void	plotParticipationFactors () override
	Plot participation factors (override in state-space elements).

Public Member Functions inherited from Element
	Element (const std::string &symbol, const std::string &location, int inputPins, int outputPins)
	Construct an element with symbol, location, and pin counts.

virtual	~Element ()
	Virtual destructor for derived-class cleanup.

int	getInputPins () const
	Get the number of input pins/phases.

int	getOutputPins () const
	Get the number of output pins/phases.

void	setInputPins (int pins)
	Set the number of input pins/phases.

void	setOutputPins (int pins)
	Set the number of output pins/phases.

void	setTransformation (bool flag)
	Enable or disable coordinate transformation for this element.

std::string	getElementSymbol () const
	Get the element type symbol.

std::vector< Bus * >	getBuses ()
	Collect all buses connected to this element.

int	getBusIndex (Bus *bus)
	Find the terminal index associated with a given bus.

Bus *	getOtherBus (Bus *)
	Get the bus connected at the opposite terminal from a given bus.

const std::map< Bus *, int > &	getConnections () const
	Const access to the bus-to-terminal connection map.

std::map< Bus *, int >	getConnections ()
	Copy of the bus-to-terminal connection map.

string	getElementLocation () const
	Get the element's grid or partition location label.

void	attachBus (Bus *, int)
	Attach a bus to a specific element terminal.

void	printElementInfo () const
	Print basic element metadata (symbol, input/output pin counts).

virtual void	printElementValues ()
	Print extended element-specific values (override in derived classes).

void	writeFile (double start_frequency, double end_frequency, int number_of_points)
	Write Y-parameter matrix samples over a frequency sweep to a file.

void	plotYParameters (double start_frequency, double end_frequency, int number_of_points)
	Plot Y-parameter matrix entries versus frequency.

virtual std::vector< std::vector< complex< double > > >	compute_y_parameters (double frequency)
	Compute complex Y-parameters at a single frequency.

virtual DenseMatrix	get_y_parameters ()
	Get the symbolic or stored Y-parameter matrix.

virtual std::vector< std::vector< complex< double > > >	apply_transformation (std::vector< std::vector< complex< double > > > &Y1, std::vector< std::vector< complex< double > > > &Y2)
	Apply a coordinate or coupling transformation to Y-parameter blocks.

virtual void	writeMNAmatrix (SymEngine::DenseMatrix &, std::unordered_map< Bus , int > &, int, std::map< Element , std::vector< RCP< const Basic > > > &)
	Stamp this element into the symbolic MNA matrix (override in derived classes).

virtual int	getNumberOfInternalStates () const
	Number of internal state variables for dynamic elements.

virtual int	getNumberOfPlantStates () const
	Number of plant states exposed for simulation (may differ from internal states).

virtual std::vector< MatrixXcd >	simulateInputStep (const std::vector< MatrixXcd > &states, int nKeep) const
	Simulate a step response given input states (override in dynamic elements).

virtual std::vector< RCP< const Basic > >	getVirtualInputSymbols () const
	Return symbolic names for virtual inputs used in stamping.

virtual map_basic_basic	getParameterSubstitutions () const
	Return parameter substitutions for symbolic evaluation.

virtual void	computePowerFlow (std::map< std::string, double > &branchData, std::map< std::string, double > &globalParams) const
	Compute branch power-flow quantities (override in derived classes).

std::map< std::string, double >	getOPFInfo () const
	Get stored OPF-related metadata for this element.

void	setOPFInfo (std::map< std::string, double > &info)
	Store OPF-related metadata for this element.

Protected Attributes
double	omega_0

double	P

double	Q

double	P_dc

double	P_min

double	P_max

double	Q_min

double	Q_max

double	theta

double	V_m

double	V_dc

double	L_reactor

double	R_reactor

double	t_delay

MatrixXd	A_matrix

MatrixXd	B_matrix

MatrixXd	C_matrix

MatrixXd	D_matrix

MatrixXd	Adelay

MatrixXd	Bdelay

MatrixXd	Cdelay

MatrixXd	Ddelay

MatrixXd	Ad_matrix

MatrixXd	Bd_matrix

MatrixXd	Cd_matrix

MatrixXd	Dd_matrix

int	pade_order = 2

VectorXd	equilibrium_state

VectorXcd	eigenvalues

VectorXcd	eigenvectors

VectorXcd	initial_state

std::map< std::string, Controller * >	controls

std::map< std::string, Filter * >	filters

const std::vector< std::string >	controller_list

const std::vector< std::string >	filter_list

Protected Attributes inherited from Element
bool	transformation = false

std::string	element_symbol

std::string	element_location

int	input_pins

int	output_pins

std::map< Bus *, int >	connections

std::map< std::string, double >	element_OPF_info = {}

DenseMatrix	Y_matrix

Detailed Description

Abstract power converter with ABCD matrices, controllers, and filters.

Constructor & Destructor Documentation

◆ Converter()

Converter::Converter	(	const std::string &	symbol,
		const std::string &	location
	)

inline

Construct a three-phase, two-terminal converter element.

Parameters

symbol	Element identifier.
location	Network area string encoding AC and DC areas (e.g. AC1_DC1).

◆ ~Converter()

Converter::~Converter ( )

virtual

References controls, and filters.

Member Function Documentation

◆ checkStability()

void Converter::checkStability ( ) const

Check system stability by evaluating eigenvalues of the A matrix.

Computes eigenvalues of the state matrix A_matrix and reports whether the linearized system around the operating point is stable, unstable, or marginally stable. A system is considered unstable if any eigenvalue has a positive real part. The function prints a short summary to stdout.

References A_matrix.

◆ computeABCD()

virtual void Converter::computeABCD ( )

inlinevirtual

Reimplemented in MMC.

◆ computeEigenvalues()

void Converter::computeEigenvalues ( )

inline

References A_matrix, eigenvalues, and eigenvectors.

◆ computeParticipationFactors()

Eigen::MatrixXd Converter::computeParticipationFactors ( const Eigen::MatrixXd & A_matrix )

inline

References A_matrix, j, and P.

Referenced by plotParticipationFactors().

◆ computeStateDerivatives()

virtual Eigen::MatrixXd Converter::computeStateDerivatives	(	const Eigen::VectorXd &	x,
		const Eigen::VectorXd &	u
	)

inlinevirtual

Reimplemented in MMC.

◆ discretize()

virtual void Converter::discretize ( double Ts )

inlinevirtual

References A_matrix, Ad_matrix, B_matrix, Bd_matrix, C_matrix, Cd_matrix, D_matrix, Dd_matrix, and discretizeABCD().

◆ getA()

Eigen::MatrixXd Converter::getA ( ) const

inline

References A_matrix.

Referenced by example_MMC().

◆ getACarea()

string Converter::getACarea ( ) const

inline

References Element::element_location.

Referenced by StabilityEstimate::compute_transfer_function().

◆ getAd()

Eigen::MatrixXd Converter::getAd ( ) const

inline

References Ad_matrix.

◆ getB()

Eigen::MatrixXd Converter::getB ( ) const

inline

References B_matrix.

Referenced by example_MMC().

◆ getBd()

Eigen::MatrixXd Converter::getBd ( ) const

inline

References Bd_matrix.

◆ getC()

Eigen::MatrixXd Converter::getC ( ) const

inline

References C_matrix.

Referenced by example_MMC().

◆ getCd()

Eigen::MatrixXd Converter::getCd ( ) const

inline

References Cd_matrix.

◆ getD()

Eigen::MatrixXd Converter::getD ( ) const

inline

References D_matrix.

◆ getDCarea()

string Converter::getDCarea ( ) const

inline

References Element::element_location.

Referenced by StabilityEstimate::compute_transfer_function().

◆ getDd()

Eigen::MatrixXd Converter::getDd ( ) const

inline

References Dd_matrix.

◆ getEigenvalues()

VectorXcd Converter::getEigenvalues ( )

inline

References eigenvalues.

◆ getEigenvectors()

VectorXcd Converter::getEigenvectors ( )

inline

References eigenvectors.

◆ getEquilibriumState()

Eigen::VectorXd Converter::getEquilibriumState ( ) const

inline

References equilibrium_state.

Referenced by example_MMC().

◆ plotEigenvalues()

void Converter::plotEigenvalues ( )

overridevirtual

Plot eigenvalues in the complex plane.

Collects eigenvalues of A_matrix and calls the helper plot_eigenvalues to render them in a graphical or saved-output form. The plot title contains the converter symbol for identification.

Reimplemented from Element.

References A_matrix, Element::element_symbol, and plot_eigenvalues_implot().

Referenced by example_MMC().

◆ plotParticipationFactors()

void Converter::plotParticipationFactors ( )

overridevirtual

Plot participation factors (override in state-space elements).

Reimplemented from Element.

References A_matrix, computeParticipationFactors(), controls, Element::element_symbol, filters, matrixToVector(), P, pade_order, plot_participation_factors_implot(), and t_delay.

Referenced by example_MMC().

◆ printEigenvalues()

void Converter::printEigenvalues ( ) const

Print eigenvalues of the A matrix.

Calculates and prints the full set of eigenvalues of A_matrix to stdout.

References A_matrix.

Referenced by example_MMC().

◆ simulateTimeStep()

virtual vector< MatrixXcd > Converter::simulateTimeStep	(	const vector< MatrixXcd > &	input,
		double	Ts,
		int	nKeep1,
		int	nKeep2
	)

inlinevirtual

◆ solveEquilibrium()

virtual void Converter::solveEquilibrium ( )

inlinevirtual

Reimplemented in MMC.

Member Data Documentation

◆ A_matrix

MatrixXd Converter::A_matrix

protected

Referenced by MMC::MMC(), MMC::MMC(), checkStability(), MMC::compute_y_parameters(), MMC::computeABCD(), MMC::computeABCD_analytical(), computeEigenvalues(), computeParticipationFactors(), discretize(), getA(), plotEigenvalues(), plotParticipationFactors(), and printEigenvalues().

◆ Ad_matrix

MatrixXd Converter::Ad_matrix

protected

Referenced by discretize(), and getAd().

◆ Adelay

MatrixXd Converter::Adelay

protected

Referenced by MMC::MMC(), MMC::MMC(), and MMC::computeStateDerivatives().

◆ B_matrix

MatrixXd Converter::B_matrix

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::compute_y_parameters(), MMC::computeABCD(), MMC::computeABCD_analytical(), discretize(), and getB().

◆ Bd_matrix

MatrixXd Converter::Bd_matrix

protected

Referenced by discretize(), and getBd().

◆ Bdelay

MatrixXd Converter::Bdelay

protected

Referenced by MMC::MMC(), MMC::MMC(), and MMC::computeStateDerivatives().

◆ C_matrix

MatrixXd Converter::C_matrix

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::compute_y_parameters(), MMC::computeABCD(), MMC::computeABCD_analytical(), discretize(), and getC().

◆ Cd_matrix

MatrixXd Converter::Cd_matrix

protected

Referenced by discretize(), and getCd().

◆ Cdelay

MatrixXd Converter::Cdelay

protected

Referenced by MMC::MMC(), MMC::MMC(), and MMC::computeStateDerivatives().

◆ controller_list

const std::vector<std::string> Converter::controller_list

protected

Initial value:

= {
        "pll",  "dc_voltage", "active_power", "ac_voltage", "reactive_power", "energy", "zcc", "occ", "ccc",
        "droop"
    }

Referenced by MMC::init_Controller().

◆ controls

std::map<std::string, Controller*> Converter::controls

protected

Referenced by ~Converter(), MMC::compute_y_parameters(), MMC::computeABCD(), MMC::computeABCD_analytical(), MMC::computePowerFlow(), MMC::computeStateDerivatives(), MMC::init_Controller(), plotParticipationFactors(), MMC::printElementValues(), MMC::solveEquilibrium(), MMC::stepControllers(), and MMC::update_MMC().

◆ D_matrix

MatrixXd Converter::D_matrix

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::compute_y_parameters(), MMC::computeABCD(), MMC::computeABCD_analytical(), discretize(), and getD().

◆ Dd_matrix

MatrixXd Converter::Dd_matrix

protected

Referenced by discretize(), and getDd().

◆ Ddelay

MatrixXd Converter::Ddelay

protected

Referenced by MMC::MMC(), MMC::MMC(), and MMC::computeStateDerivatives().

◆ eigenvalues

VectorXcd Converter::eigenvalues

protected

Referenced by computeEigenvalues(), and getEigenvalues().

◆ eigenvectors

VectorXcd Converter::eigenvectors

protected

Referenced by computeEigenvalues(), and getEigenvectors().

◆ equilibrium_state

VectorXd Converter::equilibrium_state

protected

Referenced by MMC::MMC(), MMC::computeABCD(), MMC::computeABCD_analytical(), getEquilibriumState(), and MMC::solveEquilibrium().

◆ filter_list

const std::vector<std::string> Converter::filter_list

protected

Initial value:

= {
        "ac_voltage_dq", "ac_voltage", "active_power", "reactive_power", "dc_voltage"
    }

Referenced by MMC::init_Filter().

◆ filters

std::map<std::string, Filter*> Converter::filters

protected

Referenced by ~Converter(), MMC::computeStateDerivatives(), MMC::init_Filter(), and plotParticipationFactors().

◆ initial_state

VectorXcd Converter::initial_state

protected

◆ L_reactor

double Converter::L_reactor

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computePlantJacobian(), MMC::computePowerFlow(), MMC::computeStateDerivatives(), and MMC::printElementValues().

◆ omega_0

double Converter::omega_0

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeABCD_analytical(), MMC::computeStateDerivatives(), and MMC::printElementValues().

◆ P

double Converter::P

protected

Referenced by MMC::MMC(), MMC::MMC(), computeParticipationFactors(), MMC::computePowerFlow(), plotParticipationFactors(), MMC::printElementValues(), MMC::solveEquilibrium(), and MMC::update_MMC().

◆ P_dc

double Converter::P_dc

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeABCD(), MMC::computeABCD_analytical(), MMC::printElementValues(), MMC::solveEquilibrium(), and MMC::update_MMC().

◆ P_max

double Converter::P_max

protected

Referenced by MMC::MMC(), and MMC::MMC().

◆ P_min

double Converter::P_min

protected

Referenced by MMC::MMC(), and MMC::MMC().

◆ pade_order

int Converter::pade_order = 2

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeStateDerivatives(), MMC::init_Controller(), and plotParticipationFactors().

◆ Q

double Converter::Q

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computePowerFlow(), MMC::printElementValues(), MMC::solveEquilibrium(), and MMC::update_MMC().

◆ Q_max

double Converter::Q_max

protected

Referenced by MMC::MMC(), and MMC::MMC().

◆ Q_min

double Converter::Q_min

protected

Referenced by MMC::MMC(), and MMC::MMC().

◆ R_reactor

double Converter::R_reactor

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computePlantJacobian(), MMC::computePowerFlow(), MMC::computeStateDerivatives(), and MMC::printElementValues().

◆ t_delay

double Converter::t_delay

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeStateDerivatives(), MMC::init_Controller(), plotParticipationFactors(), and MMC::printElementValues().

◆ theta

double Converter::theta

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeABCD(), MMC::computeABCD_analytical(), MMC::computeStateDerivatives(), MMC::solveEquilibrium(), and MMC::update_MMC().

◆ V_dc

double Converter::V_dc

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeABCD(), MMC::computeABCD_analytical(), MMC::computePowerFlow(), MMC::computeStateDerivatives(), MMC::printElementValues(), MMC::solveEquilibrium(), MMC::stepControllers(), and MMC::update_MMC().

◆ V_m

double Converter::V_m

protected

Referenced by MMC::MMC(), MMC::MMC(), MMC::computeABCD(), MMC::computeABCD_analytical(), MMC::printElementValues(), MMC::solveEquilibrium(), and MMC::update_MMC().

The documentation for this class was generated from the following files:

harmony/src/Elements/Converter/Converter.h
harmony/src/Elements/Converter/Converter.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Converter()

◆ ~Converter()

Member Function Documentation

◆ checkStability()

◆ computeABCD()

◆ computeEigenvalues()

◆ computeParticipationFactors()

◆ computeStateDerivatives()

◆ discretize()

◆ getA()

◆ getACarea()

◆ getAd()

◆ getB()

◆ getBd()

◆ getC()

◆ getCd()

◆ getD()

◆ getDCarea()

◆ getDd()

◆ getEigenvalues()

◆ getEigenvectors()

◆ getEquilibriumState()

◆ plotEigenvalues()

◆ plotParticipationFactors()

◆ printEigenvalues()

◆ simulateTimeStep()

◆ solveEquilibrium()

Member Data Documentation

◆ A_matrix

◆ Ad_matrix

◆ Adelay

◆ B_matrix

◆ Bd_matrix

◆ Bdelay

◆ C_matrix

◆ Cd_matrix

◆ Cdelay

◆ controller_list

◆ controls

◆ D_matrix

◆ Dd_matrix

◆ Ddelay

◆ eigenvalues

◆ eigenvectors

◆ equilibrium_state

◆ filter_list

◆ filters

◆ initial_state

◆ L_reactor

◆ omega_0

◆ P

◆ P_dc

◆ P_max

◆ P_min

◆ pade_order

◆ Q

◆ Q_max

◆ Q_min

◆ R_reactor

◆ t_delay

◆ theta

◆ V_dc

◆ V_m
