Interactive ImGui/ImPlot visualization for solver results. More...

#include "../../Constants.h"

Include dependency graph for Visualization.h:

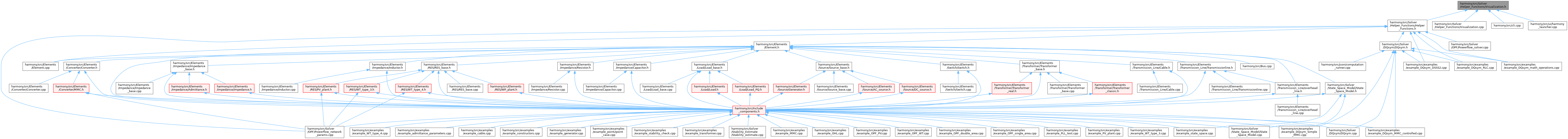

This graph shows which files directly or indirectly include this file:

Classes
struct	OPFVisualData
	Container for all OPF topology and solution data needed by viz_opf(). More...

Functions
void	visualization_stop ()
	Closes the visualization window and stops the GUI thread.

void	visualization_set_embedded_mode (bool enabled)
	Use the host ImGui/GLFW context (HarmonyUI) instead of a background window.

bool	visualization_has_tabs ()
	Returns whether plot tabs are registered.

void	visualization_clear_tabs ()
	Remove all registered plot tabs (e.g.

void	visualization_draw_embedded (const char *tabBarId="HarmonyPlotTabs")
	Draw plot tabs inside the current ImGui window (embedded / HarmonyUI mode).

void	visualization_process_pending_save (GLFWwindow *window)
	Capture a pending PNG save after ImGui::Render() on `window`.

bool	visualization_is_running ()
	Returns whether the visualization window is currently open.

void	visualization_wait ()
	Blocks until the user closes the visualization window.

void	visualization_save_tab (const std::string &tab_title, const std::filesystem::path &output_dir={})
	Schedules a PNG capture of the named tab on the next rendered frame.

std::vector< std::string >	visualization_tab_titles ()
	Titles of tabs currently registered in the visualization window.

void	add_plot_tab (const std::string &title, std::function< void()> fn)
	Registers a custom ImGui/ImPlot draw callback as a new tab.

void	bode_plot_implot (const std::vector< double > &freq, const std::vector< std::vector< double > > &mag_dB, const std::vector< std::vector< double > > &phase_deg, const std::vector< std::string > &labels, const std::string &title)
	Opens a Bode magnitude/phase plot in the visualization window.

void	nyquist_plot_implot (const std::vector< std::vector< std::complex< double > > > &H_data, const std::vector< std::string > &labels, const std::string &title)
	Opens a Nyquist plot in the visualization window.

void	plot_eigenvalues_implot (const std::vector< std::complex< double > > &eigvals, const std::string &title)
	Plots eigenvalues in the complex plane.

void	plot_participation_factors_implot (const std::vector< std::vector< double > > &P, const std::vector< std::string > &state_labels, const std::vector< std::string > &mode_labels, const std::string &title)
	Plots participation factor heatmap (states vs modes).

void	plot_abc_waveforms_implot (const std::vector< double > &t, const Eigen::MatrixXd &Xabc, const std::string &title)
	Plots three-phase abc waveforms over time.

void	plot_abc_groups_implot (const std::vector< double > &t, const std::vector< Eigen::MatrixXd > &Xabc_groups, const std::string &title)
	Plots multiple abc waveform groups on shared axes.

void	viz_opf (const OPFVisualData &data)
	Registers an "AC/DC OPF" network diagram tab in the visualization window.

Detailed Description

Interactive ImGui/ImPlot visualization for solver results.

Provides a shared GUI window with built-in Bode, Nyquist, eigenvalue, participation-factor, and abc waveform plots, plus OPF network rendering and an extension API for custom plot tabs.

Function Documentation

◆ add_plot_tab()

void add_plot_tab	(	const std::string &	title,
		std::function< void()>	fn
	)

Registers a custom ImGui/ImPlot draw callback as a new tab.

The GUI thread is auto-started on the first call. fn is invoked every frame while the tab is active.

Parameters

title	Tab title shown in the tab bar.
fn	Draw callback executed each frame.

Registers a custom ImGui/ImPlot draw callback as a new tab.

References add_tab().

◆ bode_plot_implot()

void bode_plot_implot	(	const std::vector< double > &	freq,
		const std::vector< std::vector< double > > &	mag_dB,
		const std::vector< std::vector< double > > &	phase_deg,
		const std::vector< std::string > &	labels,
		const std::string &	title
	)

extern

Opens a Bode magnitude/phase plot in the visualization window.

Parameters

freq	Frequency axis (Hz).
mag_dB	Magnitude in dB, one vector per trace.
phase_deg	Phase in degrees, one vector per trace.
labels	Trace legend labels.
title	Plot window title.

References add_tab(), j, and kHarmonyPlotPanelHeightPx.

Referenced by StabilityEstimate::bodeplotTF(), and Element::plotYParameters().

◆ nyquist_plot_implot()

void nyquist_plot_implot	(	const std::vector< std::vector< std::complex< double > > > &	H_data,
		const std::vector< std::string > &	labels,
		const std::string &	title
	)

extern

Opens a Nyquist plot in the visualization window.

Parameters

H_data	Complex frequency response, one vector per trace.
labels	Trace legend labels.
title	Plot window title.

References add_tab(), and j.

Referenced by StabilityEstimate::nyquistplotTF().

◆ plot_abc_groups_implot()

void plot_abc_groups_implot	(	const std::vector< double > &	t,
		const std::vector< Eigen::MatrixXd > &	Xabc_groups,
		const std::string &	title
	)

extern

Plots multiple abc waveform groups on shared axes.

Parameters

t	Time axis (s).
Xabc_groups	One 3�N matrix per signal group.
title	Plot window title.

References add_tab(), and kHarmonyPlotWaveformHeightPx.

Referenced by example_DQsym_DSSS2(), example_DQsym_RLC(), and DQsym::plot().

◆ plot_abc_waveforms_implot()

void plot_abc_waveforms_implot	(	const std::vector< double > &	t,
		const Eigen::MatrixXd &	Xabc,
		const std::string &	title
	)

extern

Plots three-phase abc waveforms over time.

Parameters

t	Time axis (s).
Xabc	Waveform matrix (3 rows � N samples).
title	Plot window title.

References add_tab().

Referenced by example_DQsym_math_operations().

◆ plot_eigenvalues_implot()

void plot_eigenvalues_implot	(	const std::vector< std::complex< double > > &	eigvals,
		const std::string &	title
	)

extern

Plots eigenvalues in the complex plane.

Parameters

eigvals	List of eigenvalues.
title	Plot window title.

References add_tab(), and kHarmonyPlotEigenHeightPx.

Referenced by Converter::plotEigenvalues().

◆ plot_participation_factors_implot()

void plot_participation_factors_implot	(	const std::vector< std::vector< double > > &	P,
		const std::vector< std::string > &	state_labels,
		const std::vector< std::string > &	mode_labels,
		const std::string &	title
	)

extern

Plots participation factor heatmap (states vs modes).

Parameters

P	Participation factor matrix [state][mode].
state_labels	Row labels (state names).
mode_labels	Column labels (mode indices/names).
title	Plot window title.

References add_tab(), and j.

Referenced by Converter::plotParticipationFactors().

◆ visualization_clear_tabs()

void visualization_clear_tabs ( )

Remove all registered plot tabs (e.g.

before a new run).

◆ visualization_draw_embedded()

void visualization_draw_embedded ( const char * tabBarId = "HarmonyPlotTabs" )

Draw plot tabs inside the current ImGui window (embedded / HarmonyUI mode).

References draw_plot_tabs().

◆ visualization_has_tabs()

bool visualization_has_tabs ( )

Returns whether plot tabs are registered.

◆ visualization_is_running()

bool visualization_is_running ( )

Returns whether the visualization window is currently open.

Returns: True if the GUI is running.

Referenced by runJsonSimulation().

◆ visualization_process_pending_save()

void visualization_process_pending_save ( GLFWwindow * window )

Capture a pending PNG save after ImGui::Render() on window.

Referenced by runHarmonyLauncher().

◆ visualization_save_tab()

void visualization_save_tab	(	const std::string &	tab_title,
		const std::filesystem::path &	output_dir
	)

Schedules a PNG capture of the named tab on the next rendered frame.

Parameters

tab_title Title of the tab to capture (saved as "<tab_title>.png").

Schedules a PNG capture of the named tab on the next rendered frame.

The file is written as "<tab_title>.png" in the working directory. Thread-safe: can be called from any thread.

◆ visualization_set_embedded_mode()

void visualization_set_embedded_mode ( bool enabled )

Use the host ImGui/GLFW context (HarmonyUI) instead of a background window.

Call before any simulation runs. Prevents a second GLFW/ImGui context that can crash with ImGui focus-scope errors.

Referenced by runHarmonyLauncher().

◆ visualization_stop()

void visualization_stop ( )

Closes the visualization window and stops the GUI thread.

Referenced by runHarmonyLauncher().

◆ visualization_tab_titles()

std::vector< std::string > visualization_tab_titles ( )

Titles of tabs currently registered in the visualization window.

◆ visualization_wait()

void visualization_wait ( )

Blocks until the user closes the visualization window.

Call at the end of main() to keep the process alive while the GUI is open.

Blocks until the user closes the visualization window.

Referenced by runJsonSimulation().

◆ viz_opf()

void viz_opf ( const OPFVisualData & data )

Registers an "AC/DC OPF" network diagram tab in the visualization window.

Returns immediately; the window stays open until the user closes it or visualization_stop() / visualization_wait() is called.

Parameters

data	OPF topology and solved bus/branch quantities.
